Digital Complete

The digital alignments have been listed in a logical order. Some of the adjustments are interdependent so

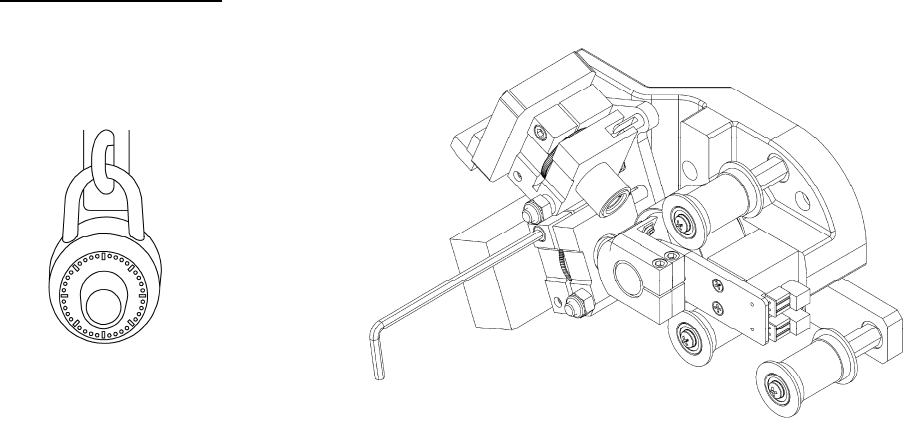

they may need to be repeated or perhaps re-checked. If all is well this is the time to lock down the reader

adjustments using a 5/32" allen wrench. One could also check that the socket head clamp screw holding

the analog LED in place is locked down properly.

It is not unusual for new prints to report error rates of 2-3. If you achieve this result digital alignment is

complete.

If not.......A section dealing with digital troubleshooting is included.
